Three-phase rectifiers

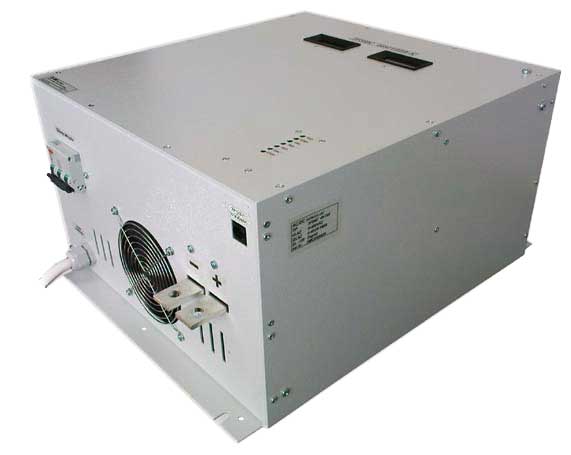

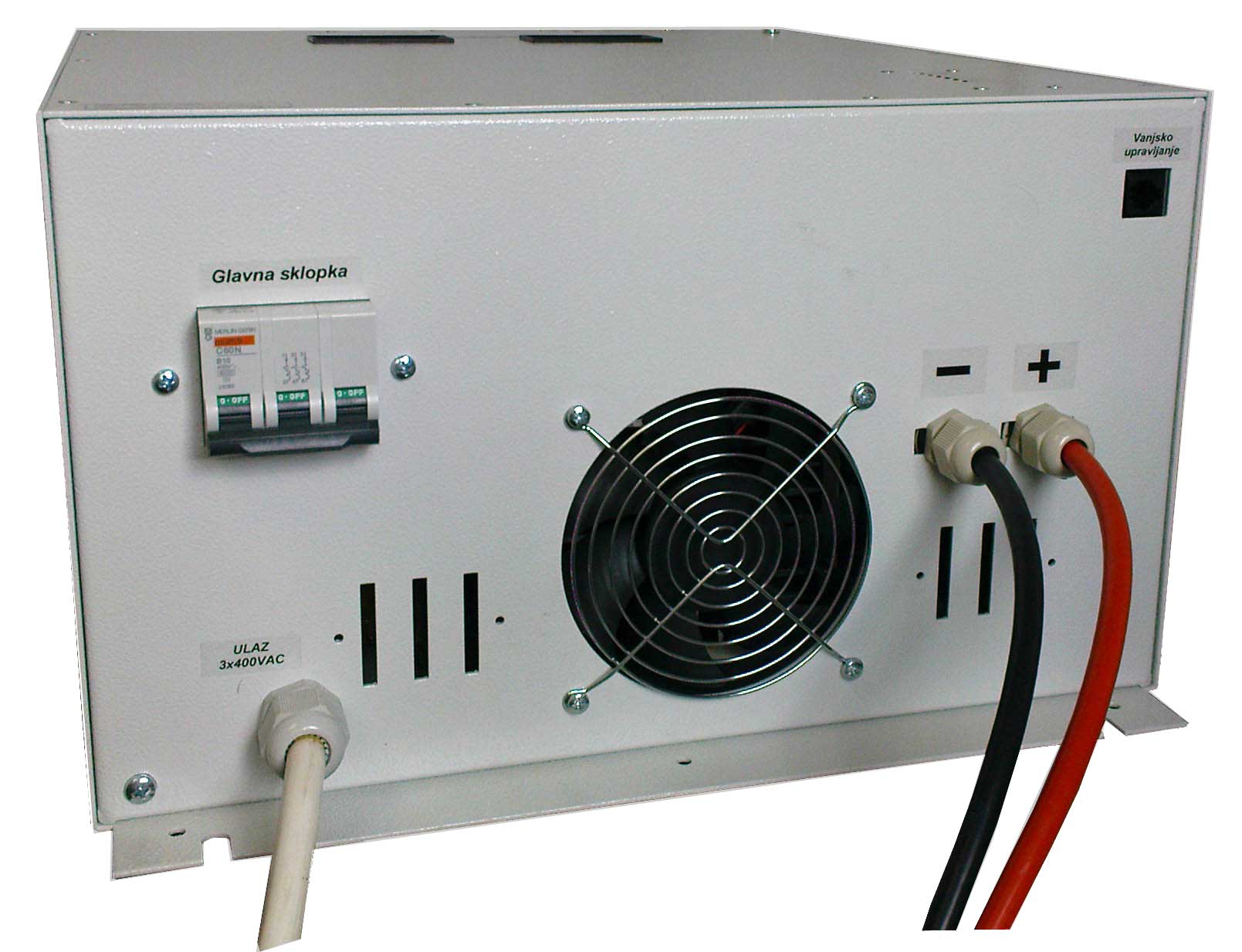

Standalone enclosure

Rectifiers are designed for charging and maintenance of batteries and DC loads power supply



TYPE   3FSMR 48-60 3FSMR 40-120 3FSMR 40-160
INPUT input voltage 3x400/230 VAC, +10% – 15% 3x400/230 VAC, +10% – 15% 3x400/230 VAC, +10% – 15%
frequency 47 – 53Hz
Pn power factor 0,95
radio interference filteri YES
OUTPUT rated voltage 48V
rated current 60A 120A 160A
voltage ripple <1%Un
voltage stability <1%Un
Pn efficiency 90%

Three-phase switching rectifiers type 3FSMR are modern designed rectifiers that use the latest technological advances of semiconductor devices (IGBT) and magnetic components (low loss ferrite core).

Main features:

  • output voltage high stability
  • very low output voltage ripple
  • high efficiency level
  • very good input cos φ
  • low noise

Protection:

  • too low and too high input voltage
  • excessive output voltage
  • excessive output current-current limitation
  • overvoltage from the grid–varistors

Signalization:

  • proper functioning
  • correct mains voltage
  • fault
  • temperature
  • digital LCD V-meter and A-meter

Other:

  • environment working temperature 0°C to 40°C
  • dimension: 404x242x480 mm - standalone case
  • forced cooling
