| TECHNICAL DATA |

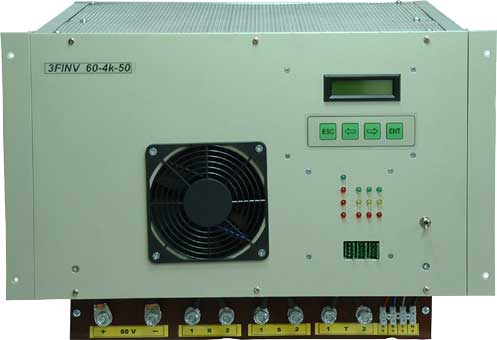

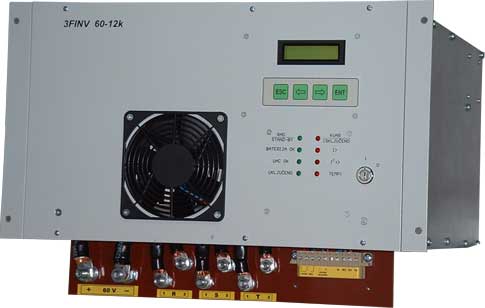

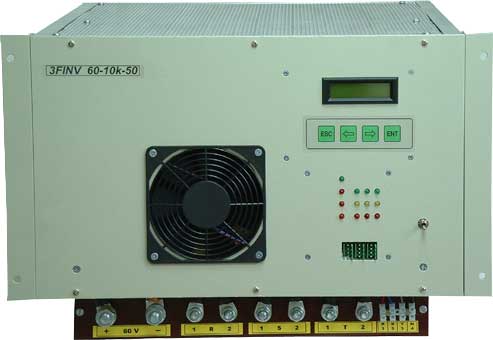

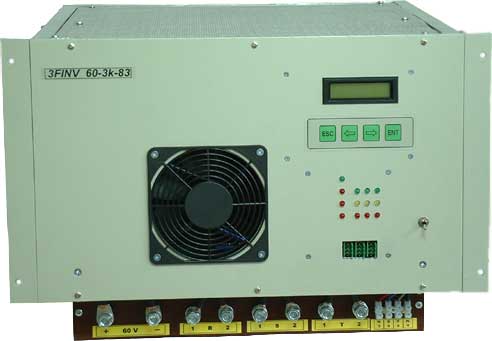

INVERTER TYPE 3FINV |
| input voltage |
DC 60V (+20%/-15%) |
| output voltage |
AC 230V 50Hz or 83Hz ( per phase) |
| rated power |
3kVA–12kVA |
| frequency accuracy |
±0,1% for independent work |
| waveform |
sine, THD<4% at linear load |
| overload capability |
100% through 30 sec |
| efficiency |
0,86 – 0,91 at rated conditions, depending on the input voltage and output current |
| cooling |
forced |
| protection |
output short-circuit - electronic |
| overload |
| level of mechanical protection |
IP 20 |
| signalization |
ON / OFF |
| stand by |
| overload |
| high / low input voltage |
| blockade of device |
| environment working temperature |
0°C to +40°C |
