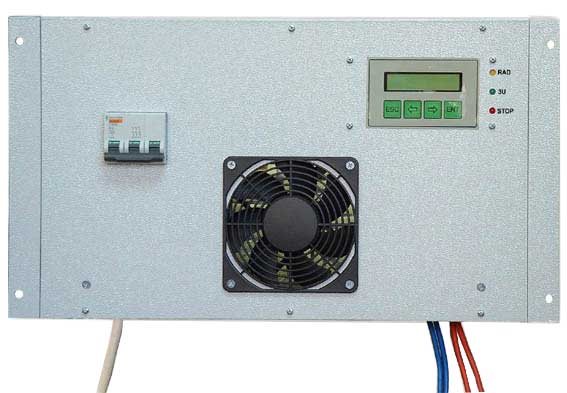

Three-phase rectifiers

Mountable

Rectifiers are designed to charge and maintain batteries and DC load power supply



TYPE   3FSMC 220–30 3FSMC 110–30 3FSMC 110–60 3FSMC 60–100 3FSMC 24–200
INPUT input voltage 3x400/230 VAC, +10% -15%
frequency 47–53 Hz
Pn power factor 0,95
radio interference filteri YES
OUTPUT rated voltage 220V 110V 110V 60V 24V
rated current 30A 30A 60A 100A 200A
voltage ripple <1%Un
voltage stability <1%Un
Pn efficiency 90%

Three-phase switching rectifiers type 3FSMR are modern design rectifiers that use the latest technological advances of semiconductor components (IGBT) and magnetic components (low loss ferrite core).

Main features:

  • output voltage high stability
  • very low output voltage ripple
  • high efficiency level
  • very good input cos φ
  • low noise

Protection:

  • too low and too high input voltage
  • too high output voltage
  • too high output current-current limitation
  • overvoltage from the grid–varistors

Signalization:

  • functioning
  • correct mains voltage
  • fault
  • LCD
  • collective fault signal with voltage-free contact

Other:

  • environment working temperature 0°C to 40°C
  • dimension: 442 x 265 x 405 mm, mounting into the cabinet
  • forced cooling
