Single-phase rectifiers
With voltage regulation
Rectifiers are designed for service charge and maintenance of batteries and supply of special appliances
| TYPE | SMR 220–10–R | SMR 2–30/20–R | SMR 3–100 | SMC 300-15-R | |
| INPUT | input voltage | 190-260 VAC | |||
| freqency | 47-53 Hz | ||||
| power factor at Pn | 0,99 | ||||
| current waveform | sine | ||||
| input current distortion | <5% | ||||
| radio interference filter | YES | ||||
| OUTPUT | output voltage | 40V–260V | 2V–30V | 1V–3V | 10V-290V |
| rated output current | 10A | 20A | 100A | 1,2A-15A | |
| max. power | 2400W | 600W | 300W | 3750 W | |
| voltage ripple | <1% Un | ||||
| voltage stability | <1% Un | ||||
| radio interference filter | YES | ||||

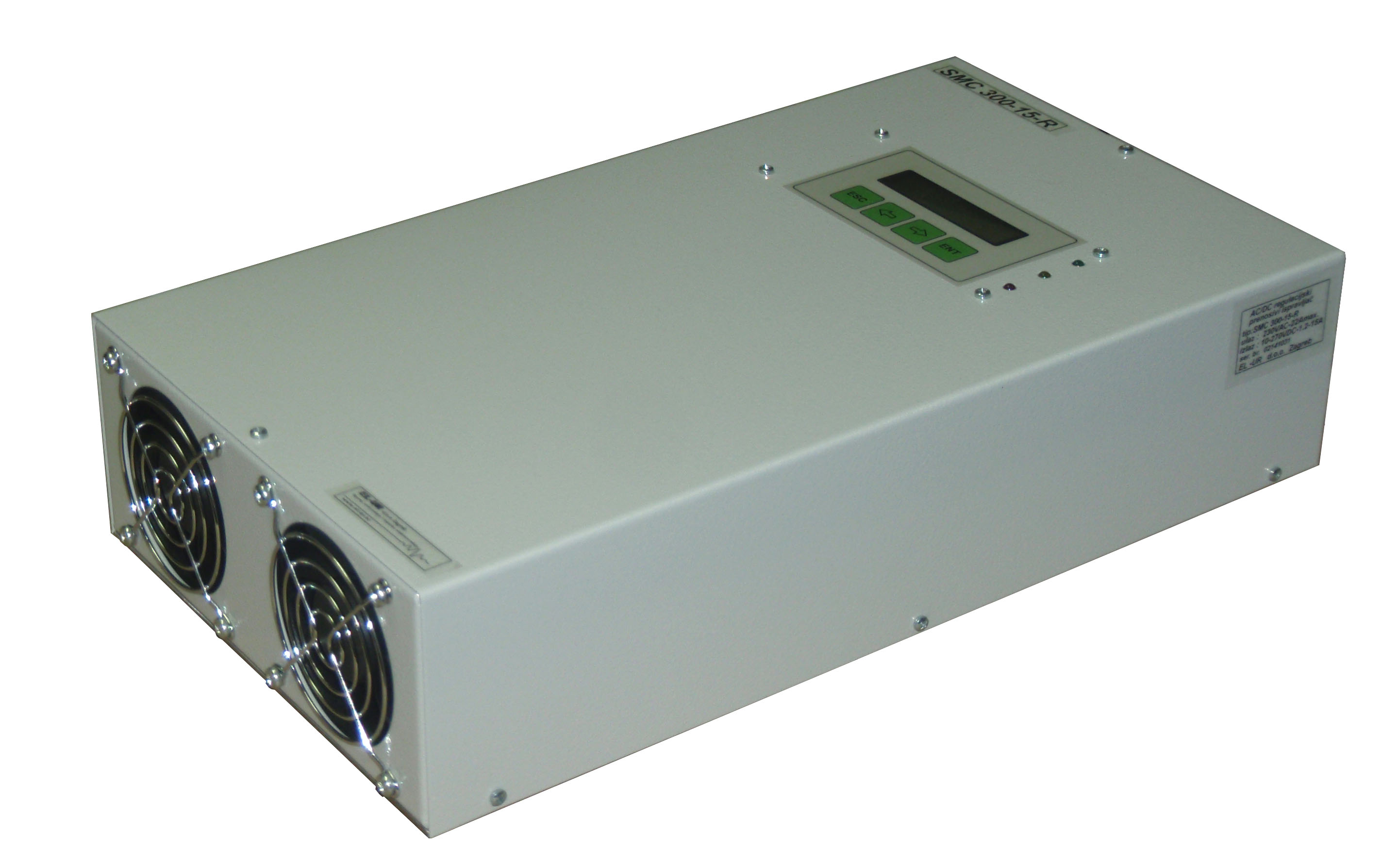

Check our new product SMC 300-15-R
Output voltage range: 10V to 290V, output current 1,2A to 15A, Pmax 3750W.
LCD display and keypad built-in for easy parameters setting.
Protection:
- excessive output current-current limitation
- overvoltage from the grid–varistors
Signalization:
- proper functioning
- digital LCD V-meter and A-meter
Other:
- environment working temperature 0°C to 40°C
- dimension:

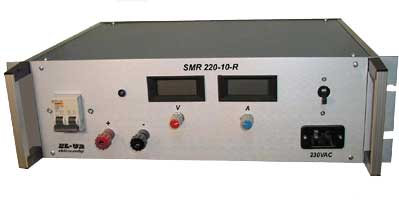

- 442x132x380 mm SMR 220V–10A–R

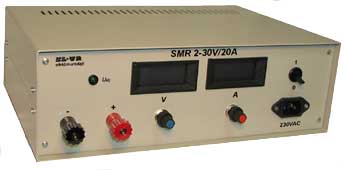

- 265x105x190 mm SMR 2–30V/20A–R

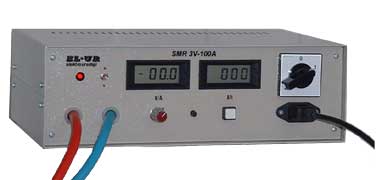

- 265x105x190 mm SMR 3V–100A–R
- all connectors at front
